Product Details:
|
| Color: | Black Or You Wanted | Material: | Alloy Steel |
|---|---|---|---|
| Application: | Hole Drilling In Mines, Hydrology And Water Well ,Geothermal Well | Usage: | Geologic Exploration,gravel Stratu |
| Formation: | Complicated Gravel Formation | Quality: | Best |
| Name: | RE531 Rc Hammer | Manufacturing Process: | Forging |
| Port: | Shanghai/Guangzhou/ Beijing | ||
| Highlight: | 3'' RC Hammer,Small RC Hammer,Alloy Steel rc drill hammer |
||
Small Size 3'' RC Hammer with Special Steel Material for Grade Control
Product Introduce:
Reverse Circulation (RC) drilling is one of the three main types of mineral exploration techniques offered. Used to compile sample rock cuttings, the drilling process relies on hollow inner tubes to transport samples back to the surface in a continuous flow, using compressed air.
RC drill rigs with their considerably larger equipment can typically reach depths of 300 to 600m. Depending on rig size and ground conditions, there has allegedly been holes drilled to a max depth of over 800m.
Adavantages:
| Length (less bit) | 1069mm | |
| Weight (less bit) | 29.0kg | |
| External diamater | φ81mm | |
| Bit shank | RE531 | |
| Hole range | φ84-φ100 | |
| Connection thread | 3" Remet | |
| Working pressure | 1.0Mpa-3.0Mpa | |
| Air consumption | 1.7 Mpa | 7 m³/min |
| 2.4 Mpa | 10 m³/min | |
| 3.0 Mpa | 14 m³/min | |
| Hammer | Bit Shank | Hole Range (mm) |
External Diameter (mm) |
Length (less bit) mm |
Weight (kg) |
Connection Thread | Working Pressure |
| RC3.5-Y | SRC3.5Y | 98-115 | 94 | 1184 | 44 | 3" Remet | 1.5-3.5Mpa |
| RC3-E531 | SRC531 | 84-100 | 81 | 1069 | 29 | 3" Remet | 1.5-3.5Mpa |
| RC4-E004 | SRC004 | 111-127 | 107 | 1252 | 52 | 3.5" / 4" Remet 4" Metzke |
1.5-3.5Mpa |
| RC4.5-E542 | SRC542 | 113-130 | 109.5 | 1191 | 57 | 3.5" / 4" Remet 4" Metzke |
1.5-3.5Mpa |
| RC4.5-E543 | SRC543 | 120-135 | 116 | 1191 | 63 | 3.5" / 4" Remet 4" Metzke |
1.5-3.5Mpa |
| RC4.5-E545 | SRC545 | 122-135 | 117.5 | 1261 | 65 | 4" / 4.5" Remet 4" / 4.5" Metzke |
1.5-3.5Mpa |
| RC5-P40 | SPR40(SPR040) | 124-142 | 120.5 | 1362 | 80.5 | 3.5" / 4.5"Remet 3.5" / 4.5"Metzke | 1.5-3.5Mpa |
| RC5.5-P52/P52R | SPR52/SPR52R | 126-142 | 121 | 1227 | 68.5 | 4" / 4.5"Remet 4" / 4.5"Metzke |
1.5-3.5Mpa |
| RC5.5-E547 | SRC547 | 130-146 | 124.5 | 1270 | 74 | 4.5" Remet 4.5" Metzke |
1.5-3.5Mpa |
| RC5.5-P54/P54R | SPR54(SRC054) | 135-150 | 130 | 1294 | 84.5 | 4.5"Remet 4.5"Metzke | 1.5-3.5Mpa |
| RC5.5-M5456 | MX5456 | 136-150 | 132 | 1362 | 90 | 4.5"Remet 4.5"Metzke | 1.5-3.5Mpa |

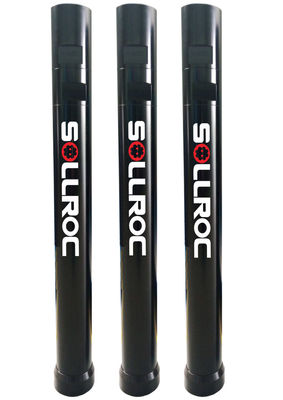

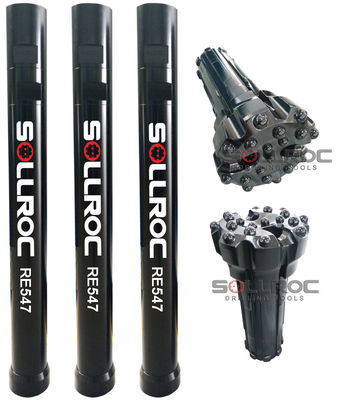

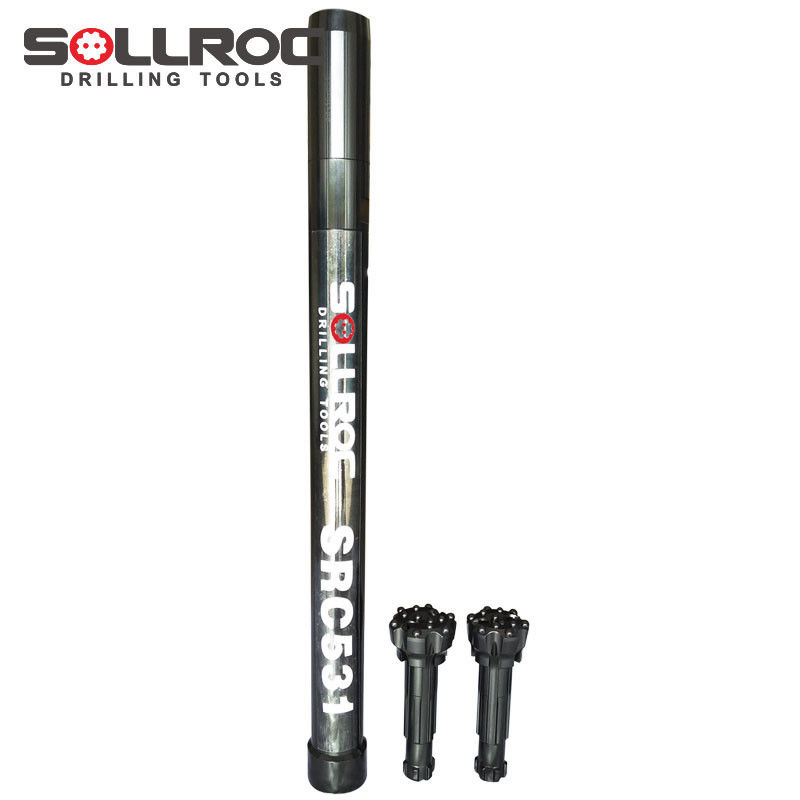

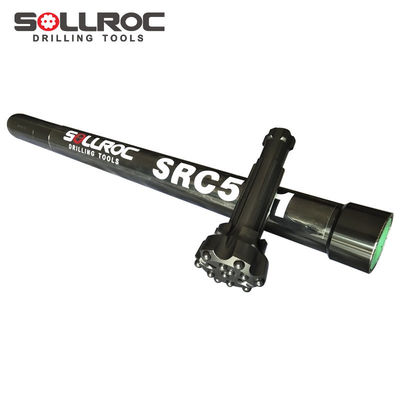

Detailed Photo:
Delivery Way:
By Air, By express or By Sea
