Product Details:
|
| Color: | Black Or You Wanted | Material: | Alloy Steel |
|---|---|---|---|
| Application: | Hole Drilling In Mines, Hydrology And Water Well ,Geothermal Well | Usage: | Geologic Exploration,gravel Stratu |
| Formation: | Complicated Gravel Formation | Quality: | Best |
| Name: | RE531 Rc Hammer | Manufacturing Process: | Forging |
| Port: | Shanghai/Guangzhou/ Beijing | ||
| Highlight: | RE531 RC Drill Hammer,Deep Exploration RC Drill Hammer,DTH Reverse Circulation Hammer |
||

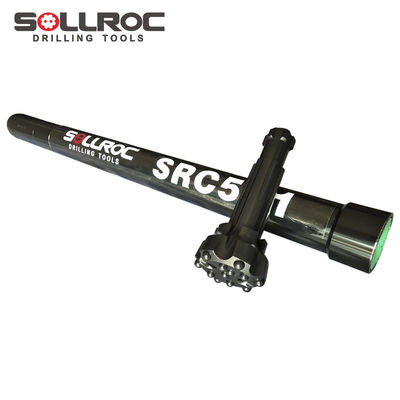

RE531 Reverse Circulation RC Drill Hammer for Deep Exploration Drilling
Product Introduce:
RC series reverse circulation DTH hammer is the latest developed product of our company.It's mainly used for deep exploration drilling and core sampling.Due to its high-quality sample results, and speed of operation for shallower holes, reverse circulation drilling is becoming increasingly popular around the globe. In fact, it's the most widely accepted chip sampling method. This is largely due to our innovative designs, and we're continuing to develop the capabilities of this valuable sampling method. Partner with SOLLROC for your reverse circulation down hole hammer drilling.
Adavantages:
1. Based on previous experience of ordinary hammer, combined with feature of reverse circulation hammer, optimized internal structure and ideal energy transfer,thus ensuring the series of hammers drilling with fast,smooth and continuous sampling.
2. The internal structure is very simple with components of high rigidity,thus ensuring long life and easy maintenance of the hammer.
3. The collection tube adopts an integrative design and can be replaced without disassembling the hammer with carburizing treatment, it has good abrasive resistance.
4. Equipment with bits designed with patent.Simply by replacing the drill bit, the same hammer can drill holes of different sizes ensuring that the sample is not contaminated.
5. In difficult conditions such as loose soil,hard rock and plenty of water exist, sampling can be done well.
| Length (less bit) | 1069mm | |
| Weight (less bit) | 29.0kg | |
| External diamater | φ81mm | |
| Bit shank | RE531 | |
| Hole range | φ84-φ100 | |
| Connection thread | 3" Remet | |
| Working pressure | 1.0Mpa-3.0Mpa | |
| Air consumption | 1.7 Mpa | 7 m³/min |
| 2.4 Mpa | 10 m³/min | |
| 3.0 Mpa | 14 m³/min | |
| Hammer | Bit Shank | Hole Range (mm) |
External Diameter (mm) |
Length (less bit) mm |
Weight (kg) |
Connection Thread | Working Pressure |
| RC3.5-Y | SRC3.5Y | 98-115 | 94 | 1184 | 44 | 3" Remet | 1.5-3.5Mpa |
| RC3-E531 | SRC531 | 84-100 | 81 | 1069 | 29 | 3" Remet | 1.5-3.5Mpa |
| RC4-E004 | SRC004 | 111-127 | 107 | 1252 | 52 | 3.5" / 4" Remet 4" Metzke |
1.5-3.5Mpa |
| RC4.5-E542 | SRC542 | 113-130 | 109.5 | 1191 | 57 | 3.5" / 4" Remet 4" Metzke |
1.5-3.5Mpa |
| RC4.5-E543 | SRC543 | 120-135 | 116 | 1191 | 63 | 3.5" / 4" Remet 4" Metzke |
1.5-3.5Mpa |
| RC4.5-E545 | SRC545 | 122-135 | 117.5 | 1261 | 65 | 4" / 4.5" Remet 4" / 4.5" Metzke |
1.5-3.5Mpa |
| RC5-P40 | SPR40(SPR040) | 124-142 | 120.5 | 1362 | 80.5 | 3.5" / 4.5"Remet 3.5" / 4.5"Metzke | 1.5-3.5Mpa |
| RC5.5-P52/P52R | SPR52/SPR52R | 126-142 | 121 | 1227 | 68.5 | 4" / 4.5"Remet 4" / 4.5"Metzke |
1.5-3.5Mpa |
| RC5.5-E547 | SRC547 | 130-146 | 124.5 | 1270 | 74 | 4.5" Remet 4.5" Metzke |
1.5-3.5Mpa |
| RC5.5-P54/P54R | SPR54(SRC054) | 135-150 | 130 | 1294 | 84.5 | 4.5"Remet 4.5"Metzke | 1.5-3.5Mpa |
| RC5.5-M5456 | MX5456 | 136-150 | 132 | 1362 | 90 | 4.5"Remet 4.5"Metzke | 1.5-3.5Mpa |
Detailed Photo:
Delivery Way:
By Air, By express or By Sea
About us:
Our company is specialising in drilling parts for decades. We have exported to more than 30 countries all over the world,such as France, Spain, Italy, South Africa, Iran, Malaysia, Australia ad etc.
For drilling parts, we have the follwings: like DTH hammers and bits, DTH drill pipes, RC hammers and bits, tophammer button bits, coupling, cross bits, drill rods located in Changsha, Hunan, China.
We have rich experience in this field of DTH hammers and bits for 20 years.
