Product Details:
|
| Color: | Black Or You Wanted | Material: | Alloy Steel |
|---|---|---|---|
| Application: | Hole Drilling In Mines, Hydrology And Water Well ,Geothermal Well | Usage: | Geologic Exploration,gravel Stratu |
| Formation: | Complicated Gravel Formation | Quality: | Best |
| Name: | RE545 RC Hammer | Manufacturing Process: | Forging |
| Port: | Shanghai/Guangzhou/ Beijing | ||
| Highlight: | RC Reverse Circulation Hammer,Shank RE545 Reverse Circulation Hammer,Deep Exploration Drilling RC Hammer |
||
RC Reverse Circulation Hammer with Shank RE545 for Deep Exploration Drilling
Product Introduce:
The reverse circulation (RC) hammer is a simple non-electrical air motor that is driven by high-pressure air. An RC hammer exhausts the air down the outside splines of the percussion bit and then up its holes through the internal diameter of the hammer and the drill string to the surface
Adavantages:
| Length (less bit) | 1261mm | |
| Weight (less bit) | 65.0kg | |
| External diamater | φ117.5mm | |
| Bit shank | RE545 | |
| Hole range | φ122-φ135 | |
| Connection thread | 4"-4.5" Remet 4"-4.5" Metzke |
|
| Working pressure | 1.5Mpa-3.5Mpa | |
| Air consumption | 1.7 Mpa | 16 m³/min |
| 2.4 Mpa | 22 m³/min | |
| 3.0 Mpa | 28 m³/min | |
| Hammer | Bit Shank | Hole Range (mm) |
External Diameter (mm) |
Length (less bit) mm |
Weight (kg) |
Connection Thread | Working Pressure |
| RC3.5-Y | SRC3.5Y | 98-115 | 94 | 1184 | 44 | 3" Remet | 1.5-3.5Mpa |
| RC3-E531 | SRC531 | 84-100 | 81 | 1069 | 29 | 3" Remet | 1.5-3.5Mpa |
| RC4-E004 | SRC004 | 111-127 | 107 | 1252 | 52 | 3.5" / 4" Remet 4" Metzke |
1.5-3.5Mpa |
| RC4.5-E542 | SRC542 | 113-130 | 109.5 | 1191 | 57 | 3.5" / 4" Remet 4" Metzke |
1.5-3.5Mpa |
| RC4.5-E543 | SRC543 | 120-135 | 116 | 1191 | 63 | 3.5" / 4" Remet 4" Metzke |
1.5-3.5Mpa |
| RC4.5-E545 | SRC545 | 122-135 | 117.5 | 1261 | 65 | 4" / 4.5" Remet 4" / 4.5" Metzke |
1.5-3.5Mpa |
| RC5-P40 | SPR40(SPR040) | 124-142 | 120.5 | 1362 | 80.5 | 3.5" / 4.5"Remet 3.5" / 4.5"Metzke | 1.5-3.5Mpa |
| RC5.5-P52/P52R | SPR52/SPR52R | 126-142 | 121 | 1227 | 68.5 | 4" / 4.5"Remet 4" / 4.5"Metzke |
1.5-3.5Mpa |
| RC5.5-E547 | SRC547 | 130-146 | 124.5 | 1270 | 74 | 4.5" Remet 4.5" Metzke |
1.5-3.5Mpa |
| RC5.5-P54/P54R | SPR54(SRC054) | 135-150 | 130 | 1294 | 84.5 | 4.5"Remet 4.5"Metzke | 1.5-3.5Mpa |
| RC5.5-M5456 | MX5456 | 136-150 | 132 | 1362 | 90 | 4.5"Remet 4.5"Metzke | 1.5-3.5Mpa |

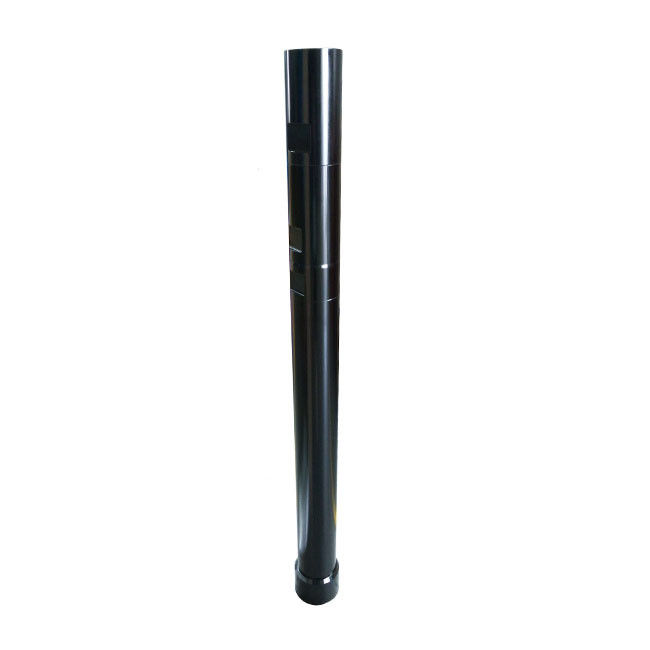

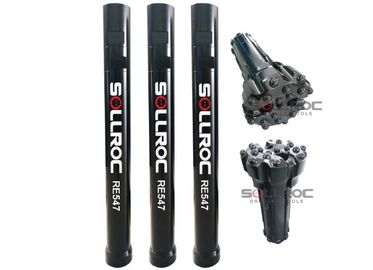

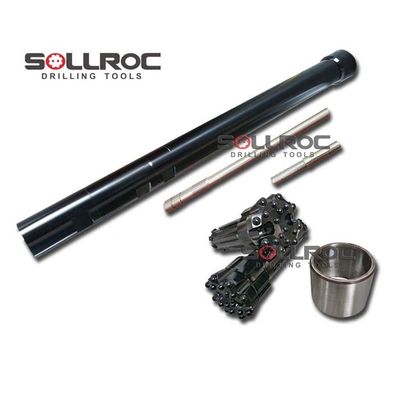

Detailed Photo:
About us:
SOLLROC Reverse Circulation drilling (RC) ,from size 3’’ to 5.5’’, is a technique of drilling that uses dual wall drill rods that consist of an outer drill rod with an inner tube. By using compressed air to extract rock fragments sample,the samples travel through rods to a sample splitter at surface, avoiding all contact between the samples and the borehole wall that allows samples to be retrieved with minimal contamination,which is mainly used in deep hole exploration and mining grade control.
Delivery Way:
By Air, By express or By Sea
