RE531 RC Drill Bit With Carbide Buttons For Initial Mineral Exploration

RE531 RC Drill Bit With Carbide Buttons For Initial Mineral Exploration
RE531 RC Drill Bit With Carbide Buttons For Initial Mineral Exploration
RE531 RC Drill Bit With Carbide Buttons For Initial Mineral Exploration RE531 RC Drill Bit With Carbide Buttons For Initial Mineral Exploration RE531 RC Drill Bit With Carbide Buttons For Initial Mineral Exploration RE531 RC Drill Bit With Carbide Buttons For Initial Mineral Exploration RE531 RC Drill Bit With Carbide Buttons For Initial Mineral Exploration RE531 RC Drill Bit With Carbide Buttons For Initial Mineral Exploration RE531 RC Drill Bit With Carbide Buttons For Initial Mineral Exploration

Large Image :  RE531 RC Drill Bit With Carbide Buttons For Initial Mineral Exploration

Product Details:
Place of Origin: China
Brand Name: SOLLROC
Certification: SGS
Model Number: SRC531 RC bit
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: negotiate
Packaging Details: Cartons + ply wood case (no plastic)
Delivery Time: 15-22 days
Payment Terms: L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability: 5000pcs per month
Contact Now

RE531 RC Drill Bit With Carbide Buttons For Initial Mineral Exploration

Description
Color: Black Or You Wanted Material: High Carbon Steel
Application: Hole Drilling In Mines, Hydrology And Water Well ,Geothermal Well Usage: Geologic Exploration,gravel Stratu
Formation: Complicated Gravel Formation Quality: Best
Shank: SRC531 Diameter: 95mm
Highlight:

RE531 RC Drill Bit

,

Carbide Buttons RC Drill Bit

,

Initial Mineral Exploration RC Drill Bit

RE531 RC Drill Bit with Carbide Buttons for Initial Mineral Exploration



Product Introduce:

Dual-wall reverse-circulation drilling uses flush-threaded double-wall drill pipe and high-pressure air to provide continuous return of formation and water samples. Cuttings and formation waters are not contaminated with drilling additives or mixed with other borehole material.



Adavantages:

1.Versatile across terrains
When compared with diamond drilling, Reverse Circulation drilling uses far less water, making it ideal for remote areas of WA, where sourcing water can drive up the running costs of an operation. Compound this with an average 40% lower operational cost, and it’s a reliable choice for complex and remote locations.

2.Reliable samples
One benefit of RC drilling is in keeping samples free of cross-contamination. Because the cuttings travel through the inner tube, they aren’t exposed to other areas of the hole. Furthermore, samples are labelled relating to depth and location.

3.Workforce and time savings
Cover more ground in a day. Combining a rapid method of retrieval of drill cuttings and superior production rates than diamond core drilling, means you get results from RC drilling faster. RC drilling also has a small rig footprint, eliminating the need for extensive earthworks.


Technical Parameters

RC bits Model SRC531

Diameter No. x Button diameter
mm		 Button angle Flushing holes Shroud Dia
mm		 Weight
(kg)		 Part No.
mm inch Gauge Button Front Button
86 3 3/8 6 x 12mm 5 x 12mm 35 2 84 6.0 SRC531-86
89 3 1/2 8 x 12mm 5 x 12mm 35 2 87 6.1 SRC531-89
95 3 3/4 8 x 12mm 6 x 12mm 35 2 93 6.3 SRC531-95
102 4 8 x 12mm 6 x 12mm 35 2 100 6.5 SRC531-102

RC hammers
Hammer Bit Shank Hole Range
(mm)		 External Diameter
(mm)		 Length (less bit)
mm		 Weight
(kg)		 Connection Thread Working Pressure
RC3-E531 RE531 84-100 81 1069 29 3" Remet 1.5-3.5Mpa
RC3.5-Y RC3.5Y 98-115 94 1184 44 3" Remet 1.5-3.5Mpa
RC4-E004 RE004 111-127 107 1252 52 3.5" / 4" Remet
4" Metzke		 1.5-3.5Mpa
RC4.5-E542 RE542 113-130 109.5 1191 57 3.5" / 4" Remet
4" Metzke		 1.5-3.5Mpa
RC4.5-E543 RE543 120-135 116 1191 63 3.5" / 4" Remet
4" Metzke		 1.5-3.5Mpa
RC4.5-E545 RE545 122-135 117.5 1261 65 4" / 4.5" Remet
4" / 4.5" Metzke		 1.5-3.5Mpa
RC5-P40 PR40(RE040) 124-142 120.5 1362 80.5 3.5" / 4.5"Remet 3.5" / 4.5"Metzke 1.5-3.5Mpa
RC5.5-P52/P52R PR52/PR52R 126-142 121 1227 68.5 4" / 4.5"Remet
4" / 4.5"Metzke		 1.5-3.5Mpa
RC5.5-E547 RE547 130-146 124.5 1270 74 4.5" Remet
4.5" Metzke		 1.5-3.5Mpa
RC5.5-P54/P54R PR54(RE054) 135-150 130 1294 84.5 4.5"Remet 4.5"Metzke 1.5-3.5Mpa
RC5.5-M5456 MX5456 136-150 132 1362 90 4.5"Remet 4.5"Metzke 1.5-3.5Mpa

Working principle
During drilling, compressed air is injected into the annulus of the dual-wall pipes and drives the RC-DTH hammer to implement high-frequency blows acting on a reverse circulation drill bit where the reverse circulation is formed.

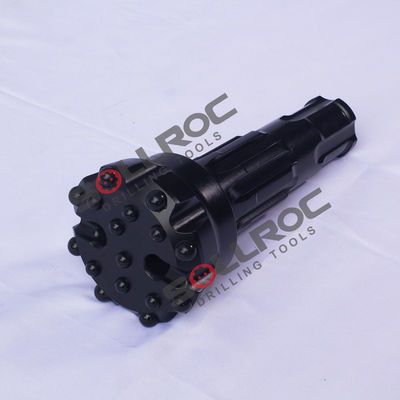

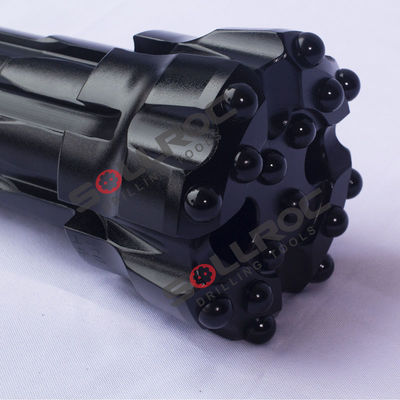

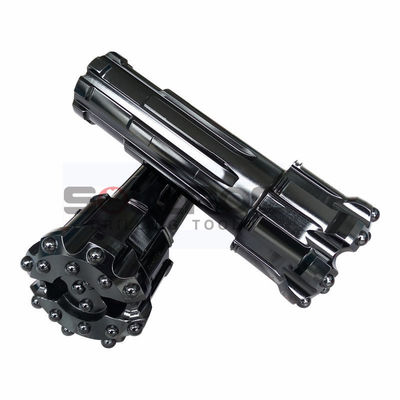

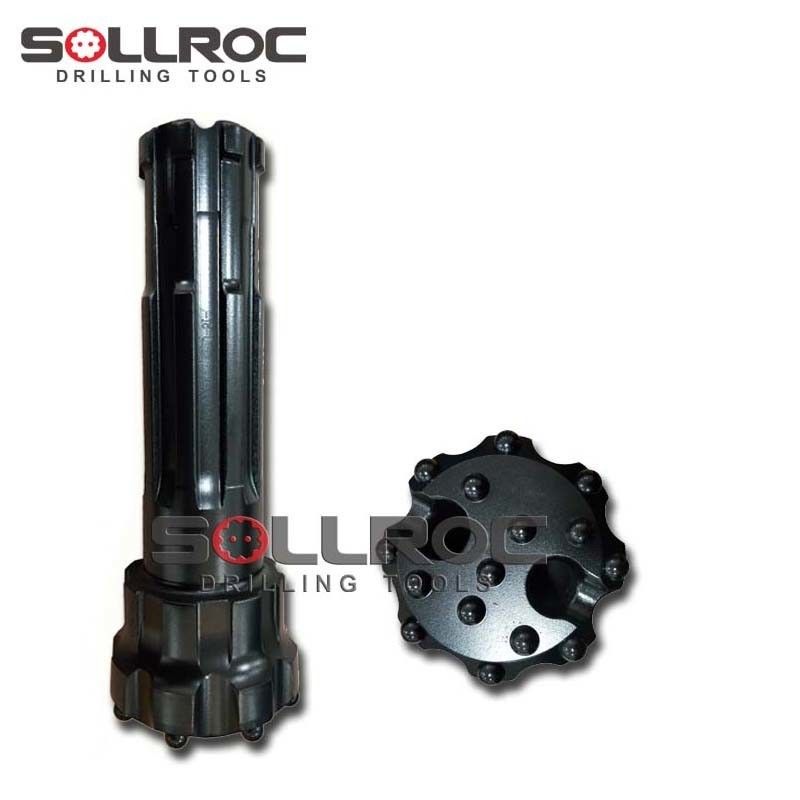

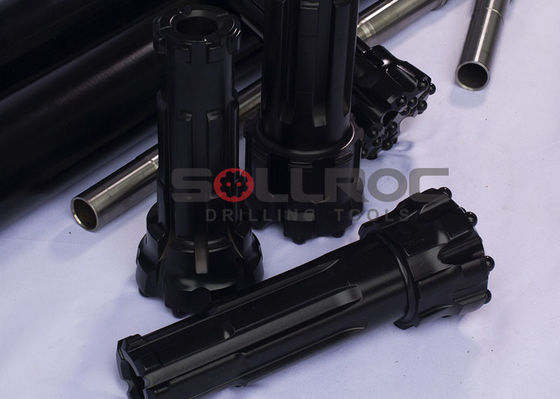

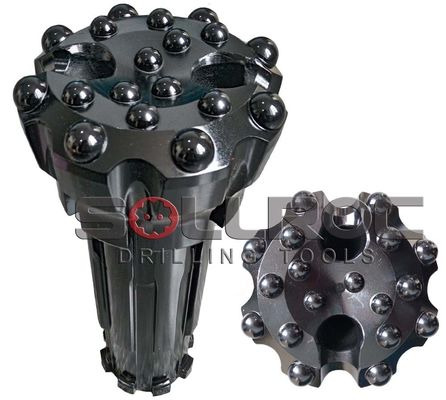

Detailed Photo:

RE531 RC Drill Bit With Carbide Buttons For Initial Mineral Exploration 0

RE531 RC Drill Bit With Carbide Buttons For Initial Mineral Exploration 1

RE531 RC Drill Bit With Carbide Buttons For Initial Mineral Exploration 2



Delivery Way:

By Air, By express or By Sea



Tag:

reverse circulation drill bits,

reverse circulation hammers,

reverse circulation drilling
