Product Details:
|
| Application: | Quarrying, Construction, Civil Engineering, Mining, | Usage: | Mining, Water Well Drilling, Geothermal Drilling |
|---|---|---|---|
| Product Name: | M60 DTH Bit | Rock Formation: | Granite, Limestone, Quartz, Etc |
| Shank: | DHD,Cop,QL,Mission,SD | Advantage: | Hign Abrasion Resistance |
| Color: | Black Or As Request | Size: | 152mm 165mm 178mm 191mm |
| Rock Hardness: | Granite, Limestone, Quartz, Etc | Machine Type: | Drilling Tool,Drilling Equipment,Downhole Tools,Mining Machine Parts |
| Use: | Well Drilling,Ore Mining,Coal Mining,Coal/Ore Mining,quarry | ||
| Highlight: | Carbide Black DTH Hammer Bits,165mm Shank DTH Hammer Bits,M60 Carbide DTH Drill Bits |
||

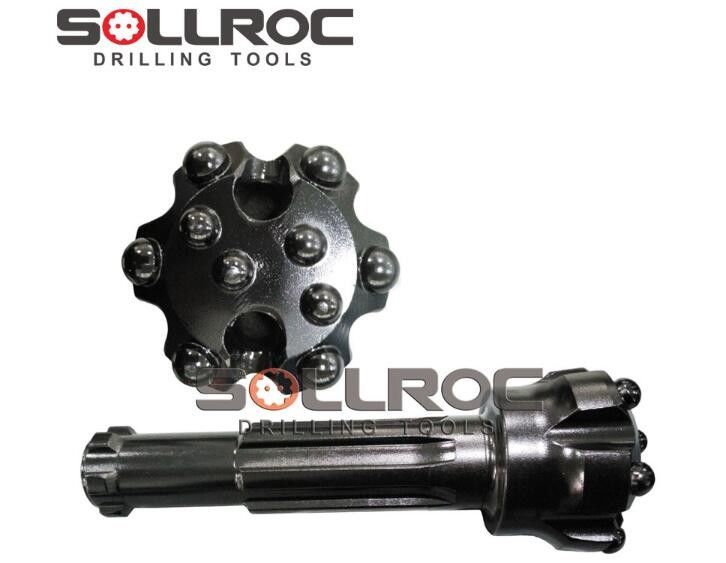

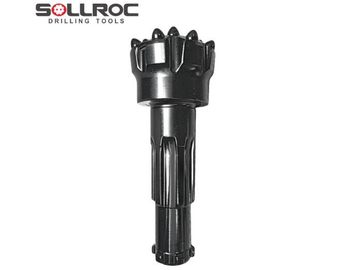

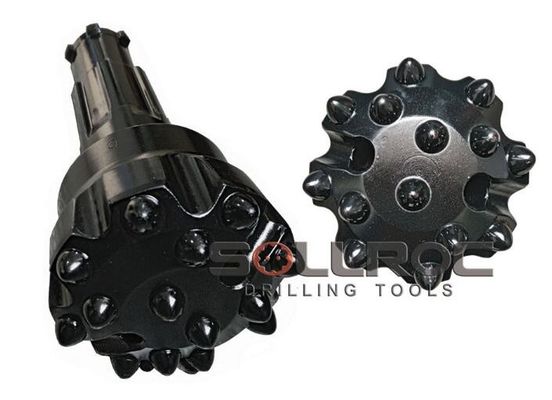

165mm Shank M60 Carbide Black DTH Hammer Bits for Construction Works
Product description
Down-the-hole (DTH) hammer bits are used with Down-the-hole hammers for drilling holes through a wide range of rocks types. In conjunction with DTH hammers, drill hammer bits are designed with a splined drive for rotating the bit in the ground.
M60 DTH drill bit specification:
| For 6" hammer DTH bits shank |
Bit Dia. (mm) |
No. Air Holes |
Gauge Buttons |
Front Buttons |
Weight (Kg) |
Part No. | |
| mm | inch | ||||||
| M60 | 152 | 6" | 2 | 8×φ16 | 8×φ16 | 25.0 | M60-152 |
| 165 | 6 1/2" | 2 | 8×φ18 | 8×φ16 | 27.0 | M60-165 | |
| 178 | 7" | 2 | 8×φ18 | 8×φ18 | 28.5 | M60-178 | |
| 190 | 7 1/2" | 3 | 9×φ18 | 9×φ16 | 31.0 | M60-190 | |
| 203 | 8" | 3 | 9×φ18 | 9×φ18 | 33.0 | M60-203 | |
1. High quality raw material, with premium hardened procedures for long life.
2. With full production chain to secure stable and prompt production leadtime.
3. Experienced Senior Technicians.
4. Long year experienced workers and engineers.
5. Quick and efficient service.
Face shape Features
Concave Face
1. Capable of drilling straighter holes in medium to hard rock which is broken or less consolidated
2. Offers high penetration rate in the above stated rock conditions
3. Has excellent air flushing characteristics
4. Predominant face style for majority of drilling conditions
Flat Face
1. Have a superior performance in hard, abrasive and broken rock conditions
2. They however have a slower penetration rate in comparison to a concave face bit
Convex Face
1. This face has been designed to offer high penetration rate in soft rock such as shale, limestone etc
2. They are recognized for having excellent capability for drilling into moderately consolidated rock conditions
Product application
At present, DTH drilling tool is widely used in underground mining, quarries, hydraulic and Hydro-Power Engineering, water well drilling, Mineral exploration, anchoring hole drilling, geothermal engineering, Subway excavation, another civil engineering.
DTH is one of the most efficient ways of drilling rock, using a rapid hammer action to break the rock into sizeable chips which are then evacuated from the bore hole by the air exhausted from the DTH Hammer. The technique provides fast drilling of accurately aligned, straight and clean holes in most ground conditions.
