Product Details:
|
| Color: | Black Or You Wanted | Material: | High Carbon Steel |
|---|---|---|---|
| Application: | Hole Drilling In Mines, Hydrology And Water Well ,Geothermal Well | Usage: | Geologic Exploration,gravel Stratu |
| Formation: | Complicated Gravel Formation | Quality: | Best |
| Shank: | 3''-5.5'' | ||
| Highlight: | 4'' Remet Thread RC Hammer,RC Hammer For Grade Control,Shank SRC004 Reverse Circulation Hammer |
||
Src004 Reverse Circulation Drilling 4'' Remet Thread RC Hammer for Grade Control
Product Introduce:
RC series reverse circulation Hammer is the latest developed product of our company. It is gaining recognition and is already the most common mineral exploration drilling method used in many regions of the world.
Sollroc' s reverse circulation drilling tools are specifically designed for all kinds of exploration drilling - deep hole and pit grade control applications. Whether you are exploring potential sites or working an existing mine, our products will assure of highperformance, exceptional reliability and dependable support
Adavantages:
1) Simple structure ensure the easy operation and maintenance.
2) Adopting advanced world famous brand components in pneumatic parts and operation parts.
3) The good seal effect eliminates the problems caused by water and flushing entering into the inner cylinder of hammer.
4) Smooth and stable speed.
5) Excellent for casing system and water well projects.
| Length(Without bit) | Weight(Without bit) | External diameter | Bit Shank | Hole range | Connection thread | ||||
| 1252mm | 52kg | 107mm | SRC004 | 111-127 | 3.5''/4'' Remet 4'' Metzke | ||||
| Working Pressure | Impact rate at 2.4Mpa | Recommended rotation speed | Air consumption | ||||||
| 1.5-3.5Mpa | 30HZ | 25-40r/min | 1.7Mpa | 2.4Mpa | 3.0Mpa | ||||
| 8m3/min | 12m3/min | 16m3/min | |||||||
| Hammer | Bit Shank | Hole Range (mm) |
External Diameter (mm) |
Length (less bit) mm |
Weight (kg) |
Connection Thread | Working Pressure |
| RC3-E531 | SRC531 | 84-100 | 81 | 1069 | 29 | 3" Remet | 1.5-3.5Mpa |
| RC3.5-Y | SRC3.5Y | 98-115 | 94 | 1184 | 44 | 3" Remet | 1.5-3.5Mpa |
| RC4-E004 | SRC004 | 111-127 | 107 | 1252 | 52 | 3.5" / 4" Remet 4" Metzke |
1.5-3.5Mpa |
| RC4.5-E542 | SRC542 | 113-130 | 109.5 | 1191 | 57 | 3.5" / 4" Remet 4" Metzke |
1.5-3.5Mpa |
| RC4.5-E543 | SRC543 | 120-135 | 116 | 1191 | 63 | 3.5" / 4" Remet 4" Metzke |
1.5-3.5Mpa |
| RC4.5-E545 | SRC545 | 122-135 | 117.5 | 1261 | 65 | 4" / 4.5" Remet 4" / 4.5" Metzke |
1.5-3.5Mpa |
| RC5-P40 | SPR40(SPR040) | 124-142 | 120.5 | 1362 | 80.5 | 3.5" / 4.5"Remet 3.5" / 4.5"Metzke | 1.5-3.5Mpa |
| RC5.5-P52/P52R | SPR52/SPR52R | 126-142 | 121 | 1227 | 68.5 | 4" / 4.5"Remet 4" / 4.5"Metzke |
1.5-3.5Mpa |
| RC5.5-E547 | SRC547 | 130-146 | 124.5 | 1270 | 74 | 4.5" Remet 4.5" Metzke |
1.5-3.5Mpa |
| RC5.5-P54/P54R | SPR54(SRC054) | 135-150 | 130 | 1294 | 84.5 | 4.5"Remet 4.5"Metzke | 1.5-3.5Mpa |
| RC5.5-M5456 | MX5456 | 136-150 | 132 | 1362 | 90 | 4.5"Remet 4.5"Metzke | 1.5-3.5Mpa |

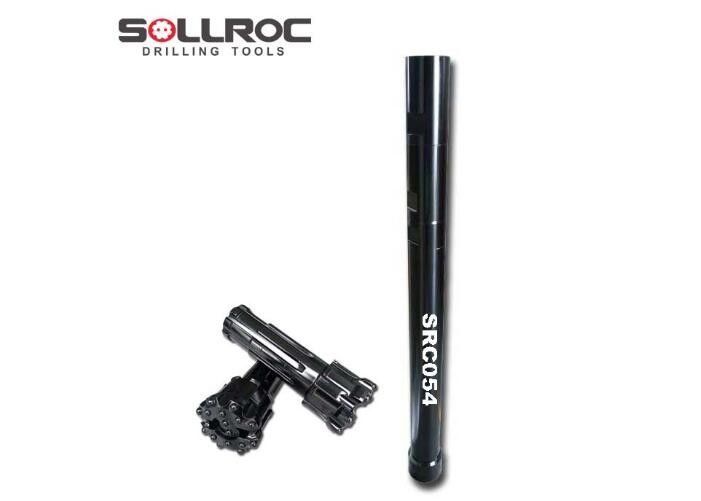

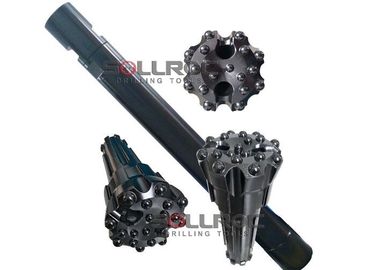

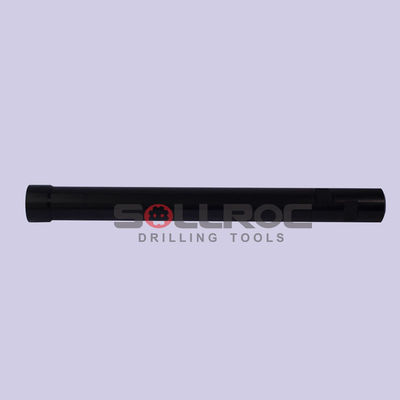

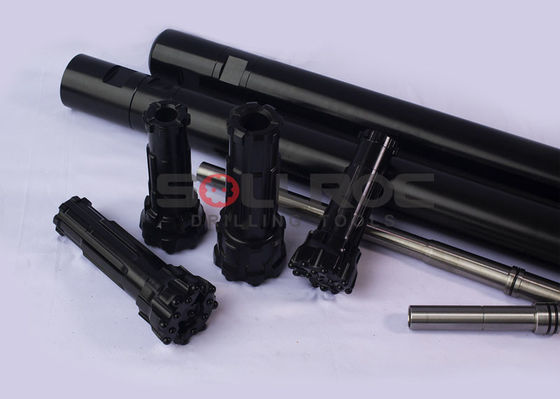

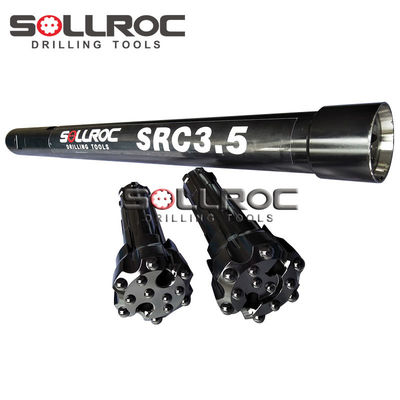

Detailed Photo:
About us:
SOLLROC Reverse Circulation drilling (RC) ,from size 3’’ to 5.5’’, is a technique of drilling that uses dual wall drill rods that consist of an outer drill rod with an inner tube. By using compressed air to extract rock fragments sample,the samples travel through rods to a sample splitter at surface, avoiding all contact between the samples and the borehole wall that allows samples to be retrieved with minimal contamination,which is mainly used in deep hole exploration and mining grade control.
Delivery Way:
By Air, By express or By Sea
