Product Details:
|
| Application: | Quarrying, Construction, Civil Engineering, Mining, | Usage: | Mining, Water Well Drilling, Geothermal Drilling |
|---|---|---|---|
| Product Name: | DTH Hammer | Rock Formation: | Granite, Limestone, Quartz, Etc |
| Shank: | 5'' Hammer | Advantage: | Hign Abrasion Resistance |
| Color: | Black Or As Request | Rock Hardness: | Granite, Limestone, Quartz, Etc |
| Machine Type: | Drilling Tool,Drilling Equipment,Downhole Tools,Mining Machine Parts | Use: | Well Drilling,Ore Mining,Coal Mining,Coal/Ore Mining,quarry |
| Highlight: | 5'' DTH Hammer,Max 2.5Mpa DTH Hammer,DTH Rock Drilling Hammer |
||

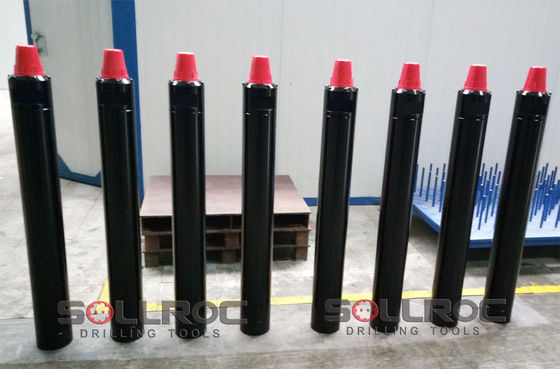

5'' Hard Rock High Air Pressure Black Color DTH Hammer for Mining Drilling
Product description

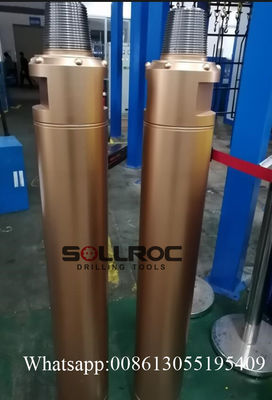

A down-the-hole hammer (DTH hammer) is a tool that can be attached to the end of a drill string and inserted into a bore. It's a small jack hammer used to break hard rock into small particles that can be flushed away by the DTH hammer's air exhaust.
Product Advantages:
1. Valveless operation to maximize energy output, provide efficient air utilitzation and reduce service requirements
2. Extra air-flow system allows for better hole cleaning in troublesome holes
3. Reversible hardened wear sleeve for optimum wear resistance even in the most abrasive conditions
DTH Hammer specification:
Model: DHD350R, COP54, SD5, M50, QL50
| DHD350 COP54 |
SD5 | M50 | QL50 | |
| Length(less bit) | 1214mm | 1175mm | 1110mm | 1156mm |
| Weight (less bit) | 76.5kg | 72.5kg | 68.5kg | 73.00kg |
| External diameter | 125mm | 125mm | 125mm | 125mm |
| Bits shank | DHD350R COP54 |
SD5 | Misson50 | QL50 |
| Bits diameter | 130-156mm 5 1/8" - 6 1/8" |
130-156mm 5 1/8" - 6 1/8" |
130-156mm 5 1/8" - 6 1/8" |
130-156mm 5 1/8" - 6 1/8" |
| Connection thread | API 2 3/8" Reg API 3 1/2" Reg |
API 2 3/8" Reg API 3 1/2" Reg |
API 2 3/8" Reg API 3 1/2" Reg |
API 2 3/8" Reg API 3 1/2" Reg |
| Air pressure | 1.0-2.5Mpa | 1.0-2.5Mpa | 1.0-2.5Mpa | 1.0-2.5Mpa |

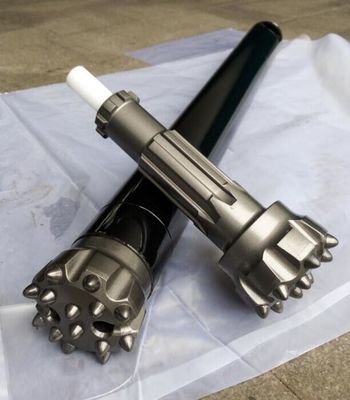

Face shape Features
Drop Center
For high penetration rates in soft to medium hard and fissured rock formations. Low to medium air pressures. Maximum hole deviation control.
Concave Face
The all-round application bit face special for medium hard and homogenerous rock formations. Good hole deviation control and good flushing capacity.
Convex Face
For high penetration rates in soft to medium-hard with low to medium air pressures. It is the most resistance to steel wash, and may reduce the load and wear on the gauge buttons, but poor hole deviation control.
Flat Face
This kind of face shape is suitable for very hard and abrasive rock formations in applications with high air pressures. Good penetration rates an resistance to steel wash.
Double Gauge Face
This kind of face shape is suitable for fast penetration rates in medium to hard rock formations. Designed for high air pressures and good resistance to steel wash step gauge bit.
Product application
At present, DTH drilling tool is widely used in underground mining, quarries, hydraulic and Hydro-Power Engineering, water well drilling, Mineral exploration, anchoring hole drilling, geothermal engineering, Subway excavation, another civil engineering.
DTH is one of the most efficient ways of drilling rock, using a rapid hammer action to break the rock into sizeable chips which are then evacuated from the bore hole by the air exhausted from the DTH Hammer. The technique provides fast drilling of accurately aligned, straight and clean holes in most ground conditions.
