Product Details:
|
| Color: | Black Or You Wanted | Material: | High Carbon Steel |
|---|---|---|---|
| Application: | Hole Drilling In Mines, Hydrology And Water Well ,Geothermal Well | Usage: | Geologic Exploration,gravel Stratu |
| Formation: | Complicated Gravel Formation | Quality: | Best |
| Shank: | SRC531 | ||
| Highlight: | 4" Remet Thread RC Hammer,Ore Grade Control RC Hammer,4" Remet Thread Reverse Circulation Hammer |
||
RC Drilling Machine High Air Compressor RC Drill hammer For Ore Grade Control.
Product Introduce:
Reverse circulation drilling, or RC drilling, is a form of percussion drilling that uses compressed air to flush material cuttings out of the drill hole in a safe and efficient manner.
Adavantages:
1. Spare parts are made of quality raw material with carburized treatment offer good wear resistance. The hammer achieve excellent wear resistance and high penetration rate
2. Various selection for bit head shape, button shape and button configuration. It can completely satisfy the customization requirement and have adaptability to varies of rock conditions.
3. RC bit is interchangeable with well-known brand shank. The interchangeable shank design helps customers to optimized inventory.
| Hammer | Hole Range | External Diameter | Length | Connection Thread | Working Pressure |
| Model | (mm) | (mm) | (without bit) | ||
| mm | |||||
| SRC531 | 84-105 | 81 | 1069 | 3" Remet | 1.0-3.0Mpa |
| SRC004 | 115-127 | 107 | 1252 | 3.5-4" Remet | 1.0-3.0Mpa |
| 4" Metzke | |||||
| SRC542 | 121-146 | 109.5 | 1191 | 3.5-4" Remet | 1.0-3.0Mpa |
| 4" Metzke | |||||
| SRC543 | 121-146 | 116 | 1191 | 3.5-4 Remet | 1.0-3.0Mpa |
| 4" Metzke | |||||
| SRC545 | 130-146 | 117.5 | 1261 | 4-4.5" Remet | 1.5-3.5Mpa |
| 4-4.5" Metzke | |||||
| SRC547 | 133-146 | 124.5 | 1270 | 4.5" Remet | 1.5-3.5Mpa |
| 4.5" Metzke | |||||
| SRC040 | 121-146 | 120.5 | 1362 | 3.5-4.5" Remet | 1.5-3.5Mpa |
| 3.5-4.5" Metzke | |||||
| SRC052 | 133-152 | 121 | 1227 | 4-4.5" Remet | 1.5-3.5Mpa |
| 4-4.5" Metzke | |||||
| SRC052R | 133-152 | 124 | 1225 | 4-4.5" Remet | 1.5-3.5Mpa |
| 4-4.5" Metzke | |||||
| SRC054 | 135-152 | 130 | 1294 | 4.5" Remet | 1.5-3.5Mpa |
| 4.5" Metzke | |||||
| SRCMX5456 | 136-152 | 132 | 1362 | 4.5" Remet | 1.5-3.5Mpa |
| 4.5" Metzke | |||||
| SRC060 | 152-190 | 146 | 1320 | As Request |

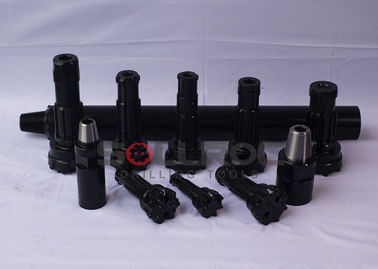

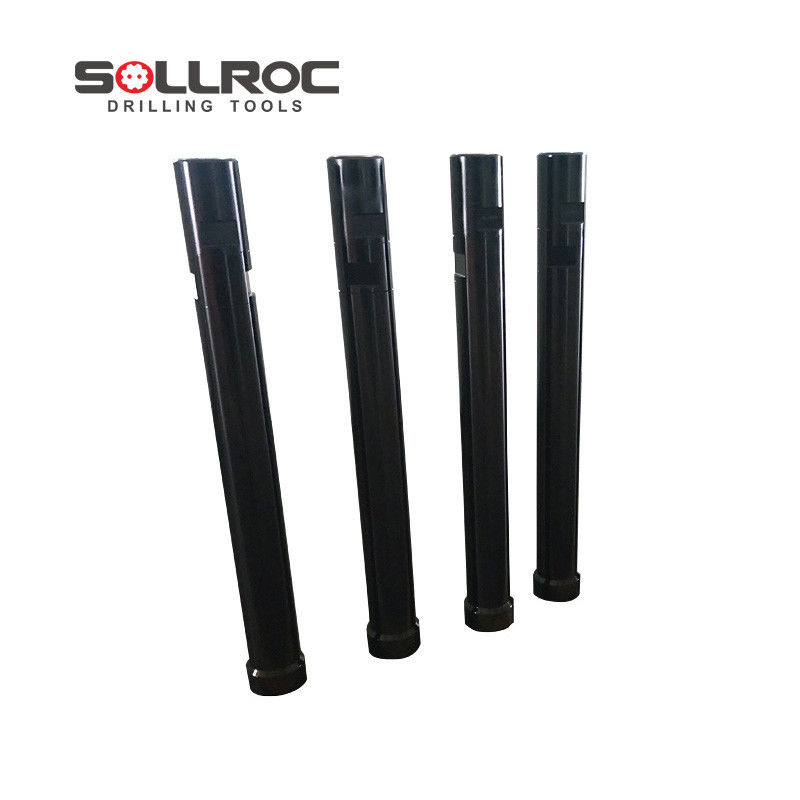

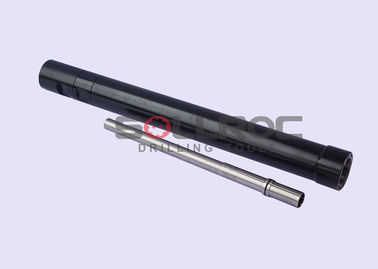

Detailed Photo:
About us:
SOLLROC Reverse Circulation drilling (RC) ,from size 3’’ to 5.5’’, is a technique of drilling that uses dual wall drill rods that consist of an outer drill rod with an inner tube. By using compressed air to extract rock fragments sample,the samples travel through rods to a sample splitter at surface, avoiding all contact between the samples and the borehole wall that allows samples to be retrieved with minimal contamination,which is mainly used in deep hole exploration and mining grade control.
Delivery Way:
By Air, By express or By Sea
