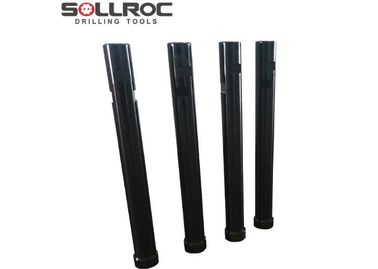

4.5'' High Carbon Steel RC Hammer For Geological Exploration

4.5'' High Carbon Steel RC Hammer For Geological Exploration
4.5'' High Carbon Steel RC Hammer For Geological Exploration
4.5'' High Carbon Steel RC Hammer For Geological Exploration 4.5'' High Carbon Steel RC Hammer For Geological Exploration 4.5'' High Carbon Steel RC Hammer For Geological Exploration 4.5'' High Carbon Steel RC Hammer For Geological Exploration 4.5'' High Carbon Steel RC Hammer For Geological Exploration

Large Image :  4.5'' High Carbon Steel RC Hammer For Geological Exploration

Product Details:
Place of Origin: China
Brand Name: SOLLROC
Certification: SGS
Model Number: 4.5'' RC Hammer
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: negotiate
Packaging Details: Cartons + ply wood case (no plastic)
Delivery Time: 15-22 days
Payment Terms: L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability: 5000pcs per month
Contact Now

4.5'' High Carbon Steel RC Hammer For Geological Exploration

Description
Color: Black Or You Wanted Material: High Carbon Steel
Application: Hole Drilling In Mines, Hydrology And Water Well ,Geothermal Well Usage: Geologic Exploration,gravel Stratu
Formation: Complicated Gravel Formation Quality: Best
Shank: 4.5'' Rc Hammer
Highlight:

Geological Exploration RC Hammer

,

High Carbon Steel RC Hammer

,

4.5'' Reverse Circulation Hammer

Reverse Circulation 4.5'' RC Drilling Hammer For Blasting And Mining Drilling



Product Introduce:

Reverse circulation is a fast and cost-efficient method of retrieving high-quality samples from exploration and mine drilling. It utilizes compressed air as the circulating fluid to carry the rock cuttings in a reverse circulation manner. Compressed air flows through the dual channel swivel, the annular space of the double-wall drill pipes, and the hollow through the DTH hammer, making the high-frequency impulse motions. Then, air is forced into the grooves of the drill bit and carries cuttings and core samples through the center of the drill bit into the inner central space of the double-wall drill pipe and then up to the surface.


Adavantages:

1.Versatile across terrains
2.Reliable samples
3.Workforce and time savings

Specification:

Technical Parameters

RC4.5-SRC542 RC HAMMER
Length(Without bit) Weight(Without bit) External diameter Bit Shank Hole range Connection thread
1191mm 57.0kg 109.5mm SRC542 113-130 3.5'/4'Remet
4"Metzke
Working Pressure Impact rate at 2.4Mpa Recommended rotation speed Air consumption
1.5-3.5Mpa 35HZ 25-40r/min 1.7Mpa 2.4Mpa 3.0Mpa
12m3/min 18m3/min 26m3/min

Hammer Bit Shank Hole Range
(mm)		 External Diameter
(mm)		 Length (less bit)
mm		 Weight
(kg)		 Connection Thread Working Pressure
RC3-E531 RE531 84-100 81 1069 29 3" Remet 1.5-3.5Mpa
RC3.5-Y RC3.5Y 98-115 94 1184 44 3" Remet 1.5-3.5Mpa
RC4-E004 RE004 111-127 107 1252 52 3.5" / 4" Remet
4" Metzke		 1.5-3.5Mpa
RC4.5-E542 RE542 113-130 109.5 1191 57 3.5" / 4" Remet
4" Metzke		 1.5-3.5Mpa
RC4.5-E543 RE543 120-135 116 1191 63 3.5" / 4" Remet
4" Metzke		 1.5-3.5Mpa
RC4.5-E545 RE545 122-135 117.5 1261 65 4" / 4.5" Remet
4" / 4.5" Metzke		 1.5-3.5Mpa
RC5-P40 PR40(RE040) 124-142 120.5 1362 80.5 3.5" / 4.5"Remet 3.5" / 4.5"Metzke 1.5-3.5Mpa
RC5.5-P52/P52R PR52/PR52R 126-142 121 1227 68.5 4" / 4.5"Remet
4" / 4.5"Metzke		 1.5-3.5Mpa
RC5.5-E547 RE547 130-146 124.5 1270 74 4.5" Remet
4.5" Metzke		 1.5-3.5Mpa
RC5.5-P54/P54R PR54(RE054) 135-150 130 1294 84.5 4.5"Remet 4.5"Metzke 1.5-3.5Mpa
RC5.5-M5456 MX5456 136-150 132 1362 90 4.5"Remet 4.5"Metzke 1.5-3.5Mpa

Working principle
The on-board compressor delivers power to a pneumatic reciprocating piston. The piston, in turn, drives a tungsten-steel drill bit which is purpose designed to be able to crush hard rock.
Similar to air core drilling, drill cuttings are returned to surface inside rods. We achieve this through the use of dual wall drill rods: an outer drill rod with an inner tube. When compressed air is blown through the rod, the volume displaces the air, lifting the samples to the surface.
Once cuttings reach a diverter at the top of the hole, they’re moved through a hose and around the cyclone, which slows the sample down. From the cyclone the sample goes over a splitter that delivers a percentage of the entire sample into a sample bag. The exploration drilling team then collect the samples aligned to the hole depth and lay them out for the client to log, and then transport to the lab for assay.

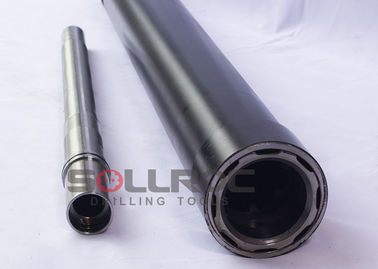

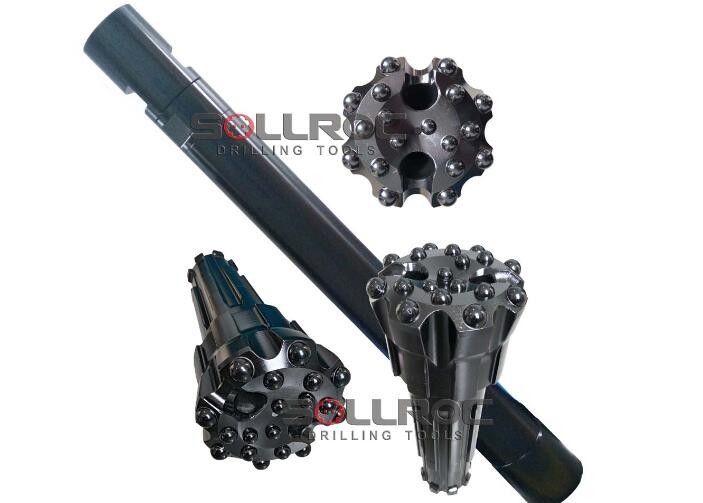

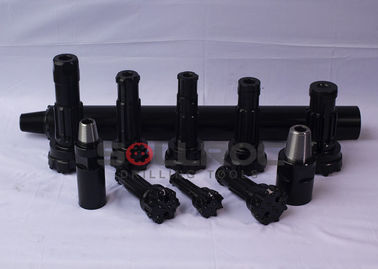

Detailed Photo:

4.5'' High Carbon Steel RC Hammer For Geological Exploration 04.5'' High Carbon Steel RC Hammer For Geological Exploration 14.5'' High Carbon Steel RC Hammer For Geological Exploration 2



About us:

SOLLROC Reverse Circulation drilling (RC) ,from size 3’’ to 5.5’’, is a technique of drilling that uses dual wall drill rods that consist of an outer drill rod with an inner tube. By using compressed air to extract rock fragments sample,the samples travel through rods to a sample splitter at surface, avoiding all contact between the samples and the borehole wall that allows samples to be retrieved with minimal contamination,which is mainly used in deep hole exploration and mining grade control.



Delivery Way:

By Air, By express or By Sea
