Product Details:
|
| Brand: | Sollroc | Orgin Place: | HuNan,China(Mainland) |
|---|---|---|---|
| Certification: | SGS | Color: | Black Or Requested |
| Delivery Time: | 18-22Days | MOQ: | 1 PC |
| Material: | Alloy Steel | Advantage: | Long Use Life |
| Product Type: | Reverse Circulation Hammer | Use: | Mining,Water Well Drilling |
| Name: | SRC040 RC Drilling Hammer | Package: | Plywood Case |
| Highlight: | reverse circulation hammers,reverse circulation drilling |
||

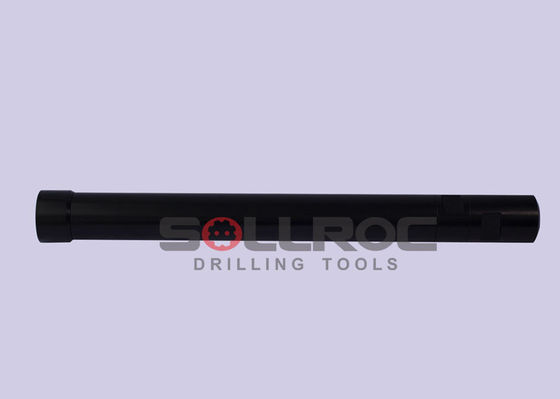

Sampling 5 Inch SRC040 RC Drilling Hammer For Rock And Water Drilling
About Rc Drilling Tools
Reverse Circulation hammers are designed with an inner sample tube that extends through the center and into the top of the hammer bit. The RC hammer exhausts the air between the bit splines and over the face of the bit. This forces the sample into the recovery holes in the face of the bit, through the center of the hammer and upward through the drill rod inner tubes to the surface for collection. The use of a shroud or collar is required when a RC hammer is used, to help direct the return air and cuttings up through the face of the bit.
Items Description:
| RC Hammer range | |
| Hammer model | Hole range |
| SRC531 | 86 mm - 102 mm (3 ⅜ in. - 4 in.) |
| SRC542 | 118 mm - 133 mm (4 ⅝ in. - 5 ¼ in.) |
| SRC543 | 124 mm - 133 mm (4 ⅞ in. - 5 ¼ in.) |
| SRC545 | 127 mm - 140 mm (5 in. - 5 ½ in.) |
| SRC120 | 127 mm - 140 mm (5 in. - 5 ¾ in.) |
| SRC040 | 127 mm - 140 mm (5 in. - 5 ½ in.) |
| SRC052 | 133 mm - 143 mm (5 ⅜ in. - 5 ⅝ in.) |
| SRC054 | 137 mm - 146 mm (5 ⅜ in. - 5 ¾ in.) |
SRC040 hammer technical data:
| Length (less bit) | 1362mm | |
| Weight (less bit) | 75kg | |
| External diamater | φ120.5mm | |
| Bit shank | SRC040 | |
| Hole range | φ121-φ146 | |
| Connection thread | 3.5"-4.5" Remet 4"-4.5" Metzke |
|
| Working pressure | 1.5Mpa-3.5Mpa | |
| Air consumption | 1.7 Mpa | 16 m³/min |
| 2.4 Mpa | 22 m³/min | |
| 3.0 Mpa | 28 m³/min | |
| Solloc RC Hammers Specifications | ||||||||
| Hammer Size | Hammer | Bit Shank | Hole Range (mm) | External Diameter (mm) | Length (without bit) mm | Weight (N.W.) kgs | Connection Thread | Working Pressure |
| 3" | SRC531 | SRC531 | 84-100 | 81 | 1069 | 29 | 3" Remet | 1.0-3.0Mpa |
| 3" | SRC035 | SRC035 | 84-105 | 85 | 1075 | 35 | 3" Remet | 1.0-3.0Mpa |
| 4 1/2" | SRC004 | SRC004 | 111-127 | 107 | 1252 | 52 | 3.5"-4" Remet 4" Metzke | 1.0-3.0Mpa |
| 4 1/2" | SRC540 | SRC540 | 111-127 | 107 | 1252 | 52 | 3.5"-4" Remet 4" Metzke | 1.0-3.0Mpa |
| 5" | SRC040 | SRC040 | 113-130 | 109.5 | 1191 | 57 | 3.5"-4" Remet 4" Metzke | 1.0-3.0Mpa |
| 5" | SRC542 | SRC542 | 113-130 | 109.5 | 1191 | 57 | 3.5"-4" Remet 4" Metzke | 1.0-3.0Mpa |
| 5" | SRC543 | SRC543 | 120-135 | 116 | 1191 | 62 | 3.5"-4" Remet 4" Metzke | 1.0-3.0Mpa |
| 5" | SRC545 | SRC545 | 122-135 | 117.5 | 1261 | 65 | 4"-4.5"Remet 4"-4.5" Metzke | 1.5-3.5Mpa |
| 5 1/2" | SRC547 | SRC547 | 130-146 | 124.5 | 1270 | 71 | 4.5"Remet 4.5" Metzke | 1.5-3.5Mpa |
| 5" | SRC040 | SRC40 | 124-142 | 120.5 | 1362 | 80.5 | 3.5"-4.5" Remet 3.5"-4.5" Metzke | 1.5-3.5Mpa |
| 5 1/2" | SRC052 | SRC052 | 126-142 | 121 | 1227 | 68.5 | 4"-4.5"Remet 4"-4.5" Metzke | 1.5-3.5Mpa |
| 5 1/2" | SRC052 | SRC052R | 130-146 | 124 | 1225 | 65 | 4"-4.5"Remet 4"-4.5" Metzke | 1.5-3.5Mpa |
| 5 1/2" | SRC054 | SRC054 | 135-150 | 130 | 1294 | 84.5 | 4.5"Remet 4.5" Metzke | 1.5-3.5Mpa |
| Metzke, Remet thread is available! | ||||||||
| Any special type shank of RC Hammer will be available by requests. | ||||||||
Shank can be available:
1) Non-Blocking:Our RC hammers are proved to ensure extremely low rate of blocking during it works.
2) High Efficiency:The well drilling equipment carries with larger power of impact frequency and torque, thus ensuring faster penetration. Compared with others, the efficiency can be improved 10%.
Our Service:
1.Pre-sale service:
Act as a good adviser and assistant of clients enable them to get rich and generous returns on their investments .
(1)Select equipment model.
(2)Design and manufacture products according to customer‘s needs;
(3)Train technical personnel for clients .
2.Services during the sale:
(1)Pre-check and accept products ahead of delivery .
(2)Help clients to draft solving plans .
3.After-sale services:
Provide considerate services to minimize clients' worries.
(1)Complete After-sales service,professional engineers available to service machinery at home or oversea.
(2)24 hours technical support by e-mail.
(3)Other essential technical services.
Quality warranty:
Our hammers are made of high quality steel and all spares are inspected strictly before shipping. We have quickly responses for your complaint and suggestion.
Package:
Using ply-wooden cases and pallet for exporting to protect products and avoid the damagement during transportation. Also we can customize package according to your special requests.
Transportation:
By air, By Express or By sea according to your requests
