Product Details:
|
| Material: | Alloy Steel | Color: | Black Or Optional |
|---|---|---|---|
| Keyword: | ODEX System | Applications: | Water Well Drilling, Mining, Etc |
| Specification: | ODEX90 ODEX115 ODEX140 ODEX165 ODEX190 | Name: | ODEX Drilling System |
| Highlight: | odex piling system,geotechnical drilling tools |
||
Eccentric Overburden Casing Drilling ODEX Drilling System for well drilling
Product specifications:
| Model | Casing sizes | Min. inner dia. Of casing shoe |
Reaming Dia. | Hammer shank | Drill pipe | |||
| Max. OD | Min. ID | Thread | O.D. | Wrench Flat | ||||
| ODEX90 | 115 | 102 | 90 | 123 | DHD3.5/COP32/QL30 | API 2 3/8" REG | 76 | 65 |
| ODEX115 | 142 | 128 | 115 | 152 | DHD340/COP44/SD4/QL40/M40 | API 2 3/8" REG | 76 | 65 |
| ODEX140 | 171 | 157 | 140 | 187 | DHD350R/COP54/SD5/QL50/M50 | API 2 3/8" REG | 89 | 65 |
| ODEX165 | 196 | 183 | 165 | 211 | DHD360/COP64/SD6/QL60/M60 | API 2 3/8" REG | 114 | 95 |
| ODEX190 | 222 | 205 | 190 | 237 | DHD360/COP64/SD6/QL60/M60 | API 3 1/2" REG | 114 | 95 |
| ODEX240 | 273 | 261 | 240 | 308 | DHD380/COP84/SD8/QL80/M80 | API 3 1/2" REG | 114 | 95 |
| ODEX280 | 324 | 305 | 280 | 378 | DHD1120/SD10/NUMA100 | |||
Other shank can be available:
3.5" hammer, shank DHD3.5 / Bulroc BR3 / COP32 / QL30 / M30 /Mach303
4" hammer, shank IR DHD340A / SD4 / COP44 / QL40 / Bulroc BR4 / M40 / Mach44 / COP44 gold (TD40) shank
5" hammer, shank IR DHD350R / SD5 / COP54 / Bulroc BR5 / QL50 / M50 /Mach50 shank
6" hammer, shank IR DHD360 / SD6 / COP64 / Bulroc BR6 / QL60 / M60 shank
8" hammer, shank IR DHD380 / SD8 / COP84 /QL80 shank
10" hammer, shank SD10 / Numa100 shank
12" hammer, shank IR DHD1120 / SD12 / Numa120 / Numa125 shank
15" hammer, shank SD15 shank
We can also provide related products DTH button bits, ODEX, symmetric overburden systems, slide block drilling systems, etc and DTH drilling pipes for various thread API REG, API IF, BECO, etc

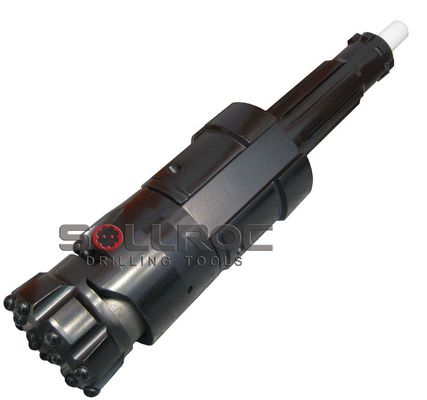

Product photos
Quality warranty:
SOLLROC products are made of high quality steel and all spares are inspected strictly at every production steps before shipping. We have quickly responses for your complaint and suggestion.
Package:
Using plywood cases and pallet for seaworthy to protect products and avoid the damagement during transportation by sea. Using cartons and plywood cases for air worthy to less the weight and save the freigth. Also we can customize package according to your special requests. Special mark is available.
Production time:
3-4 weeks after received payment in advance.
Transportation:
By air, by Express or by sea according to your requests.
SOLLROC is a leading manufacturer of rock drilling tools, like DTH hammers and bits, DTH drill pipes, RC hammers and bits, tophammer button bits, coupling, cross bits, drill rods located in Changsha, Hunan, China.
We have rich experience in this field of DTH hammers and bits for 20 years.
Owing to high quality, professional serivce and competitive price, we have gotton good reputation from our customers all over the world, such as France, Spain, Italy, South Africa, Australia, Iran, Malaysia, etc.
